ODF 2U RACK MOUNT

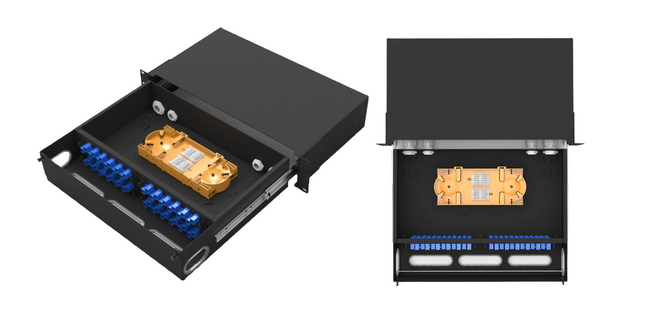

2U Rack Mount Sliding Type

Optical Distribution Frame (ODF)



The FiberCore 2U Rack Mount Sliding Type Optical Distribution Frame (ODF) is a high-performance fiber management solution designed for standard 19-inch rack installations. It provides increased fiber capacity while maintaining organized cable routing, protection, and accessibility.


  • Standard 19“
  • 2U up to 72F using SC adapter
  • Mounting Bracket
  • Three section stainless steel rails, independent, & sliding bottom box
  • Waterproof connector cable entry
  • 175-type adaptor plate
  • Different plates and adapters can be loaded (LC/SC/FC/ST)
  • High quality sheet metal technology and mist spray


  • Data Centers
  • Computer Centers
  • Machine Rooms
  • Database Facilities
  • Structured Fiber Network Installations


  • Size: 430mm × 327.5mm × 87.2mm
  • Material: SPCC
  • Rack Compatibility: 19-inch rack
  • Maximum Capacity:
    • SC: Up to 72 cores
    • LC: Up to 144 cores
