Figure-8 Aerial Outdoor Optical Fiber Cable G.652D HDPE 48 Core (GYTC8S)

The GYTC8S Figure-8 Aerial Outdoor Optical Fiber Cable G.652D HDPE 48 Core is designed to deliver high-capacity single-mode fiber connectivity for self-supporting aerial installations. Utilizing G.652D low-attenuation optical fibers, a rugged HDPE (High-Density Polyethylene) outer sheath, and an integrated galvanized steel messenger wire, this 48-core cable provides exceptional mechanical strength, weather resistance, and reliable long-distance optical transmission. Its high fiber count makes it ideal for backbone networks, metropolitan infrastructure, and large-scale outdoor fiber deployments.


  • G.652D single-mode fiber for low attenuation and long-distance transmission
  • 48-core high-capacity design for large-scale fiber networks
  • Figure-8 self-supporting construction with integrated steel messenger wire
  • Rugged HDPE outer sheath for superior UV, moisture, and weather resistance
  • High tensile strength to withstand environmental stress and mechanical loads
  • Corrosion-resistant construction for extended outdoor service life
  • Water-blocking tape prevents moisture ingress
  • Steel tape armoring provides enhanced mechanical protection
  • Stable optical performance under demanding outdoor conditions
  • Easy deployment using standard aerial suspension hardware


  • Aerial backbone and distribution fiber networks
  • High-density metropolitan and campus fiber infrastructure
  • Fiber-to-the-Building (FTTB) and enterprise access networks
  • Long-haul telecommunications transmission
  • Outdoor LAN/WAN network expansion
  • Utility, transportation, and industrial communication systems
  • Rural broadband deployment
  • Multi-point aerial fiber connections


  • Fiber Count: 48 cores
  • Fiber Type: Single Mode G.652D
  • Cable Construction: Figure-8 Self-Supporting

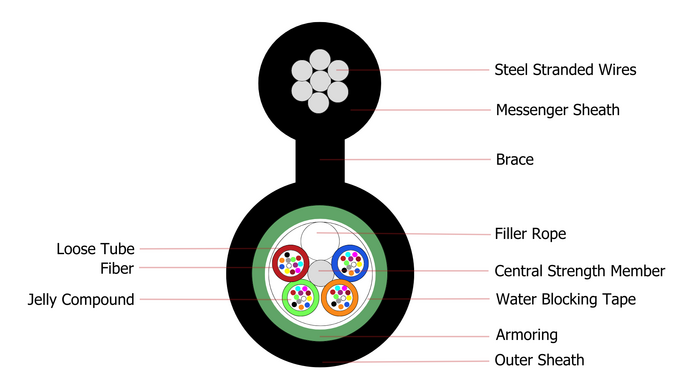

  • Cable Design: 1+5 (Strength Member + Tube & Filler)
  • Messenger Wire: Galvanized stranded steel wire, 3.6 mm (1.2 mm × 7)
  • Messenger Sheath: MDPE, 6.0 mm diameter
  • Central Strength Member: Steel wire, 1.5 mm diameter
  • Loose Tube Material: PBT
  • Loose Tube Diameter: 1.9 ± 0.05 mm
  • Loose Tube Thickness: 0.30 ± 0.03 mm
  • Maximum Fibers per Tube: 12
  • Filler Rope: LDPE, 1.9 mm diameter (1 pc)
  • Water Blocking: Water-blocking tape
  • Armoring: Steel tape, 0.20 ± 0.03 mm thickness
  • Outer Sheath Material: HDPE
  • Outer Sheath Thickness: 1.5 ± 0.02 mm
  • Outer Sheath Diameter: 9.8 ± 0.05 mm
  • Brace Material: HDPE
  • Brace Size: 2.0 × 3.0 mm
  • Cable Size (W × H): 9.8 × 18.3 mm
  • Cable Weight: 188 kg/km
