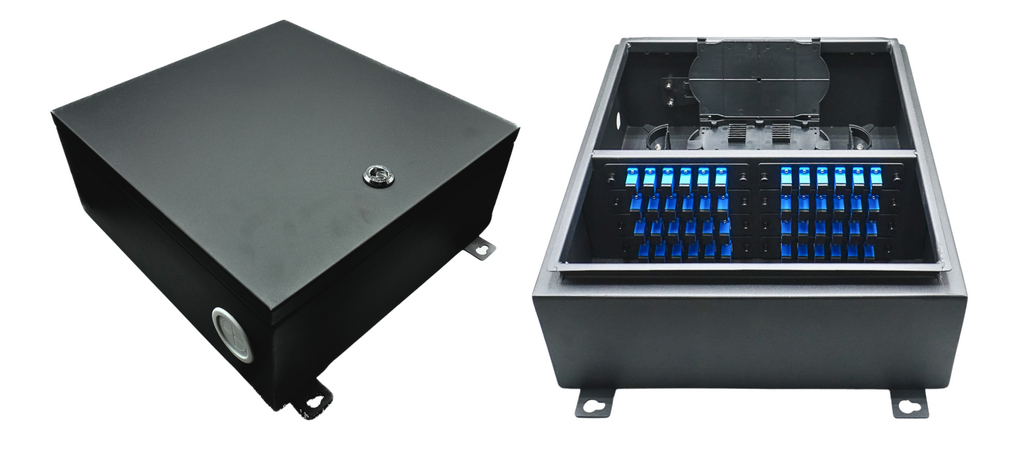

FIBER OPTIC WALL MOUNT OPTICAL DISTRIBUTION FRAME – 48 PORT SC

The FiberCore Wall Mount Optical Distribution Frame 48 Port SC is a high-capacity fiber termination and distribution enclosure designed for large-scale FTTx deployments.


Supporting up to 48 SC adapters, it provides structured fiber splicing, storage, and distribution in a fully enclosed system. Built with durable materials and designed for demanding environments, it ensures long-term reliability while simplifying fiber management and maintenance.


  • High-capacity wall-mounted fiber distribution design
  • Supports up to 48 fiber cores
  • Compatible with SC, LC, FC, and ST adapters
  • Supports simplex and duplex adapters
  • Integrated fusion splice tray
  • Independent cable routing design
  • Secure fiber fixation system
  • Dustproof and waterproof enclosure
  • Anti-aging protection
  • Lockable front cover
  • Easy maintenance access
  • Supports wall and pole mounting



  • Telecommunications backbone and access networks
  • CATV (Cable TV) systems
  • LAN & WAN enterprise networking
  • Data centers and server rooms
  • FTTH (Fiber to the Home) and FTTx deployment
  • Indoor optical cable distribution and management


  • Model: FC-41-WM-12
  • Application: Indoor and outdoor cable-to-pigtail protective connection
  • Material: Cold-rolled steel with static powder-coated finish
  • Color:
    • Light gray
    • Black (customizable)
  • Ingress Protection: IP66
  • Fiber Capacity: Up to 12 cores
  • Adapter Compatibility:
    • SC
    • LC
    • FC
    • ST
  • Cable Support:
    • Single-mode
    • Multimode fiber
    • Ribbon, bundle, or single cables
  • Cable Entry Ports: 2–4 ports
  • Supported Cable Diameter: Ø8.5mm – Ø18mm
  • Mounting Type:
    • Wall mount
    • Pole mount
  • Dimensions:
    • Height: 300mm
    • Width: 280mm
    • Depth: 65mm
  • Operating Temperature: -40°C to +70°C
