CAT6A 23AWG UTP
OUTDOOR CABLE
Solid PE Cable
TIA/EIA 568.2-D • EN50173 • ISO/IEC 11801
CAT6A 23AWG UTP Outdoor Cable is a high-performance outdoor copper cabling solution designed for reliable network connectivity in demanding environments. Featuring solid bare copper conductors, HDPE insulation, and a durable PE jacket, it provides excellent protection, stable transmission performance, and high-bandwidth capability up to 500MHz for outdoor structured cabling applications.

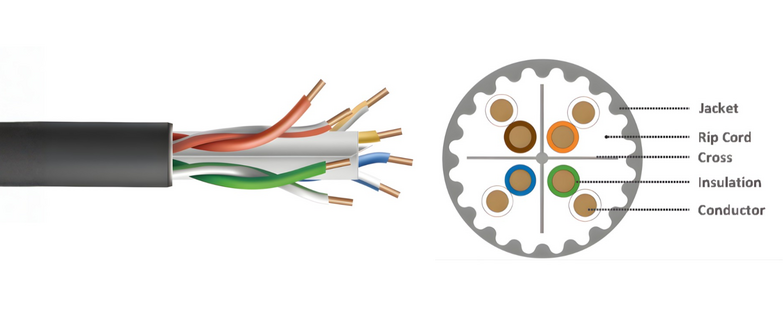

COMPONENT | SPECIFICATION |
Conductor | 23AWG Solid Bare Copper, 0.57±0.0010mm |
Insulation | HDPE, OD 1.05±0.1mm, Min Thickness 0.24mm |
Filler | Rip Cord 3*250D |
Central Element | 5.3mm (REF) + CROSS |
Jacket | PE, OD 7.0±0.35mm, Average Thickness 0.5±0.05mm, Black |
