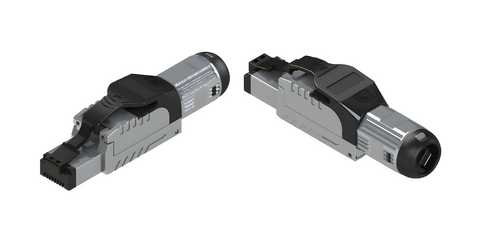

CAT6A FTP Field Termination Plug



CAT6A FTP Field Termination Plug is designed for fast and reliable on-site termination of shielded Cat.6A Ethernet cables without the need for specialized assembly equipment. Featuring a durable zinc alloy housing, support for both T568A and T568B wiring, and compatibility with PoE+ applications, it provides a robust and high-performance solution for structured cabling, data centers, and industrial network installations.


  • Fully shielded zinc alloy housing
  • Supports T568A and T568B wiring configurations
  • Compatible with 23AWG to 26AWG solid and stranded cables
  • Complies with Cat.6A patch cord component level requirements
  • Suitable for PoE+ (IEEE 802.3at) applications
  • Quick and reliable tool-less installation
  • Supports MPTL (Modular Plug Terminated Link) up to 90 meters


  • Insertion Force: 30 N maximum (IEC 60603-7)
  • Retention Strength: 7.7 kg between jack and plug
  • Operating Temperature: -10°C to +60°C (ISO/IEC 11801, ANSI/TIA/EIA-568 C.2-1)
  • Mating Life:
    • Jack: 750 mating cycles minimum (ISO/IEC 11801, IEC 60603-7-5)
    • IDC: Suitable for 23–26 AWG stranded and solid wire, minimum 20 installation cycles


  • Extractor: PC, UL 94V-2, black
  • Housing: Nickel-plated zinc die-cast
  • Plug Housing: PC, UL 94V-2, black
  • Plug Contacts: 50 μin gold-plated contact surface
  • Cover: Nickel-plated zinc die-cast
  • Wire Management Bar: PC + Glass Fiber, UL 94V-2, white
  • IDC Housing: PC, UL 94V-2
  • IDC Terminal: Tin-plated titanium copper
  • Grounding Contact: Nickel-plated zinc die-cast
  • Boot Housing: Nickel-plated zinc die-cast
  • Boot SR: PC, UL 94V-2, black
  • PCB: UL 94V-0
