OM2 Indoor Distribution Cable GJPFJH

GJPFJH Indoor Tight Buffer Fiber Distribution Cable MM OM2 Orange

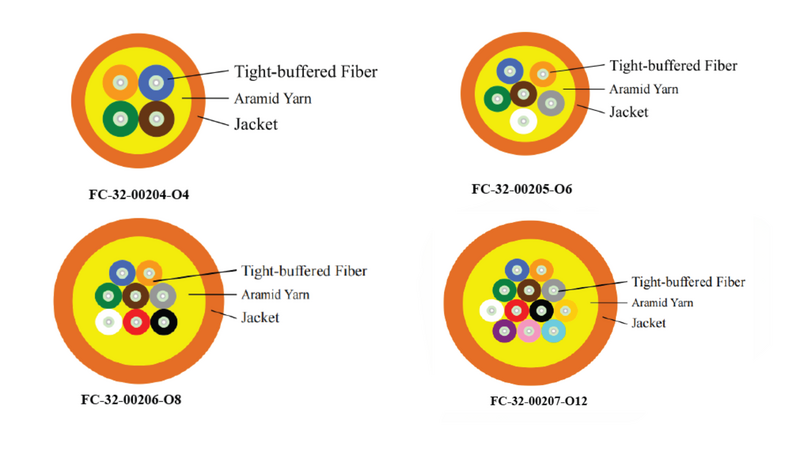

The GJPFJH Indoor Tight Buffer Fiber Distribution Cable MM OM2 Orange is a multimode fiber optic distribution cable designed for reliable indoor structured cabling and backbone network applications. Constructed with OM2 G.651.1 50/125μm tight-buffered fibers, Kevlar (Aramid Yarn) strength members, and a flame-retardant LSZH (Low Smoke Zero Halogen) outer jacket, it delivers dependable optical performance, enhanced mechanical protection, and simplified installation. Available in 4, 6, 8, and 12-core configurations, it is ideal for enterprise networks, telecommunications, and campus fiber deployments.

Features

OM2 G.651.1 50/125μm multimode fiber optimized for high-speed indoor optical communication.
Tight-buffered fiber construction simplifies cable handling, routing, and field termination.
Kevlar (Aramid Yarn) strength members provide enhanced tensile strength and cable protection.
LSZH (Low Smoke Zero Halogen) jacket minimizes smoke and toxic emissions during fire incidents.
Lightweight and flexible design for easy installation in indoor environments.
Excellent mechanical durability for structured cabling systems.
Stable optical transmission with low signal attenuation.
Compatible with standard fiber optic connectors, patch panels, and optical distribution frames (ODFs).

APPLICATIONS

Indoor backbone cabling
Horizontal structured cabling systems
Enterprise LAN and campus networks
Data centers and server rooms
Telecommunications equipment rooms
Optical Distribution Frames (ODFs)
Fiber-to-the-Building (FTTB) and Fiber-to-the-Office (FTTO) installations
Patch panel and equipment interconnections
Commercial and institutional fiber optic infrastructure

Technical Specifications

ITEM	SPECIFICATION
Fiber Type	Multimode OM2 G.651.1 (50/125μm)
OFL Bandwidth @850nm	≥700 MHz·km
OFL Bandwidth @1300nm	≥500 MHz·km
Attenuation @850nm	≤3.0 dB/km
Attenuation @1300nm	≤1.0 dB/km
